Board & Batten Vinyl Shutters

  • Decorative exterior vinyl board and batten shutters with two colors.

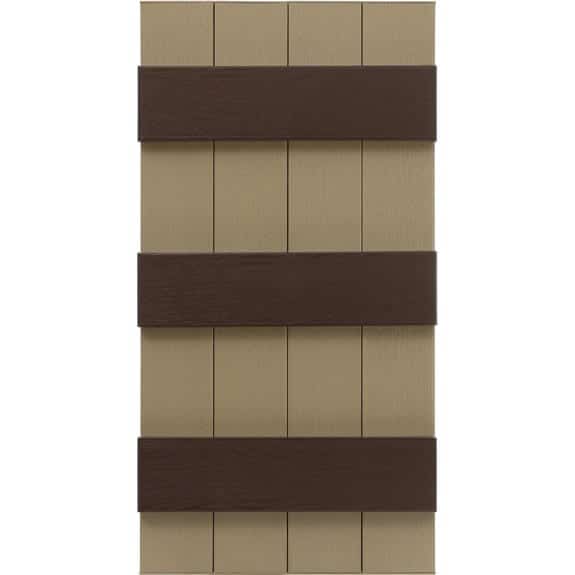

    Vinyl board & batten shutter with 3 battens
  • Exterior vinyl brown board and batten shutter.
    Vinyl board & batten shutter with 3 battens
  • Vinyl board and batten exterior shutters.
    Vinyl board & batten shutter
  • Outside shutters with four boards and three battens for windows.

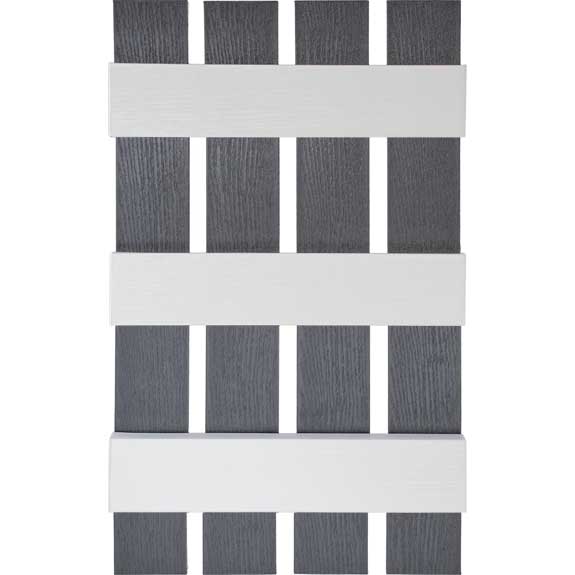

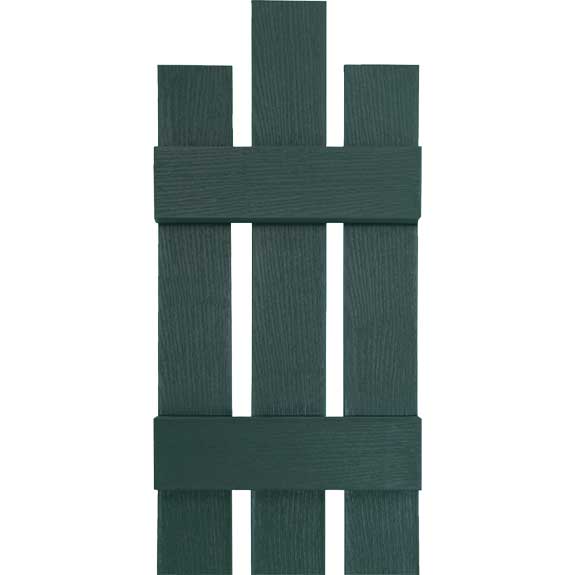

    Shutter with 3 battens and open weave
  • Outdoor board and batten 21 configuration for exterior windows.
    Board & batten #21 configuration
  • Outdoor two color vinyl board and batten arch top shutters.

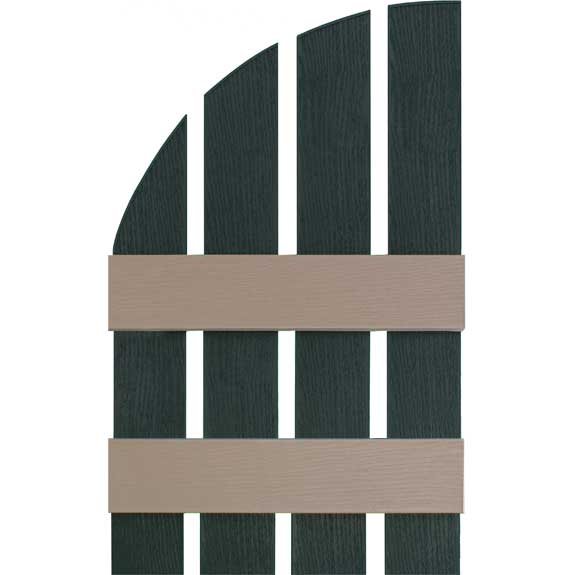

    Arch top board & batten shutter open weave
  • Exterior z-pattern board and batten shutter.

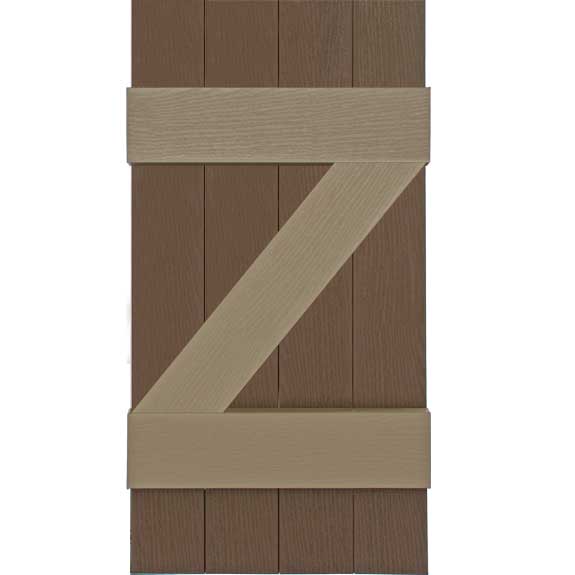

    Board & batten z-pattern shutter

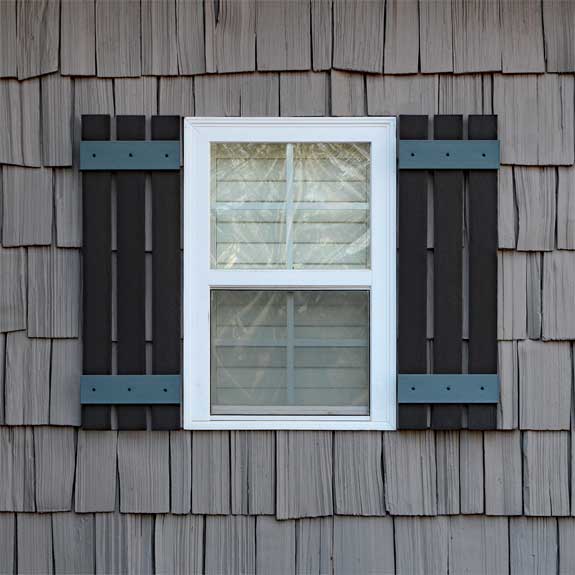

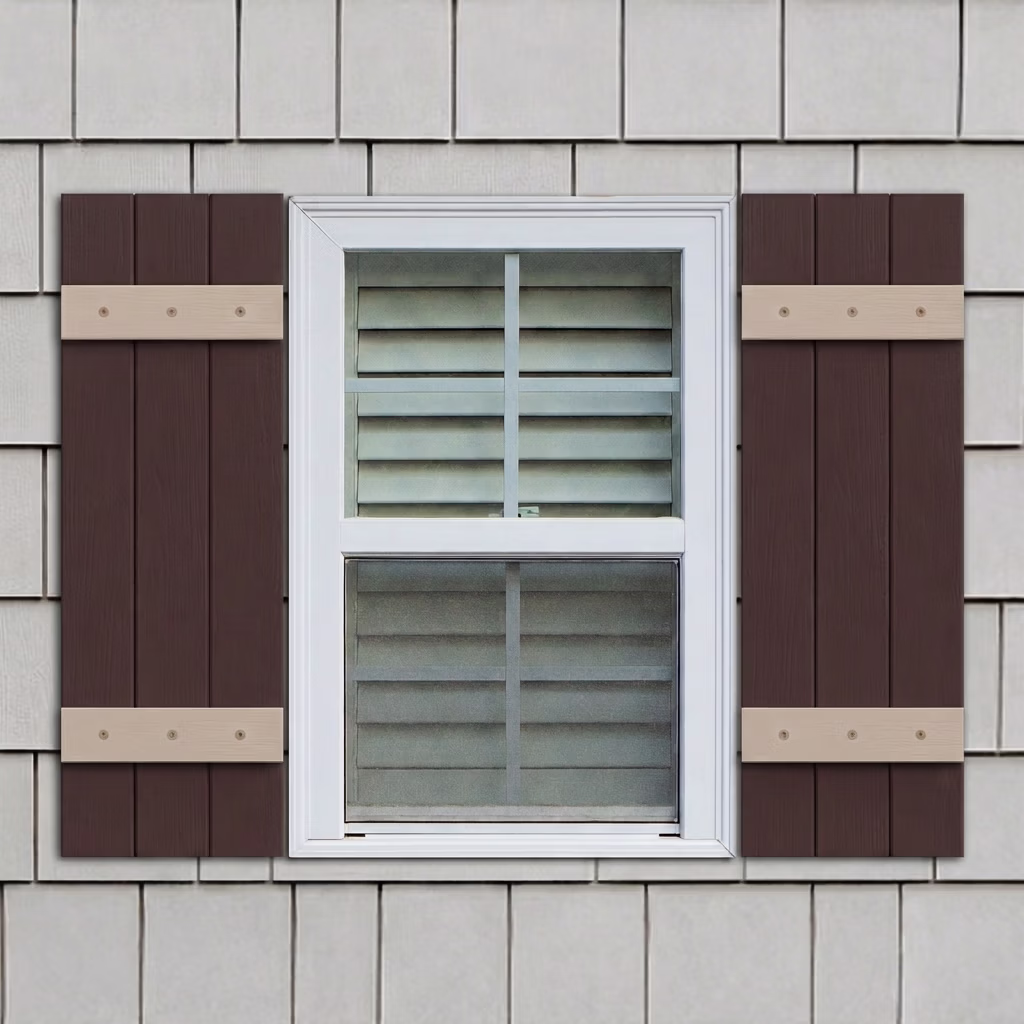

  • Installed vinyl board and batten exterior shutters on a window.

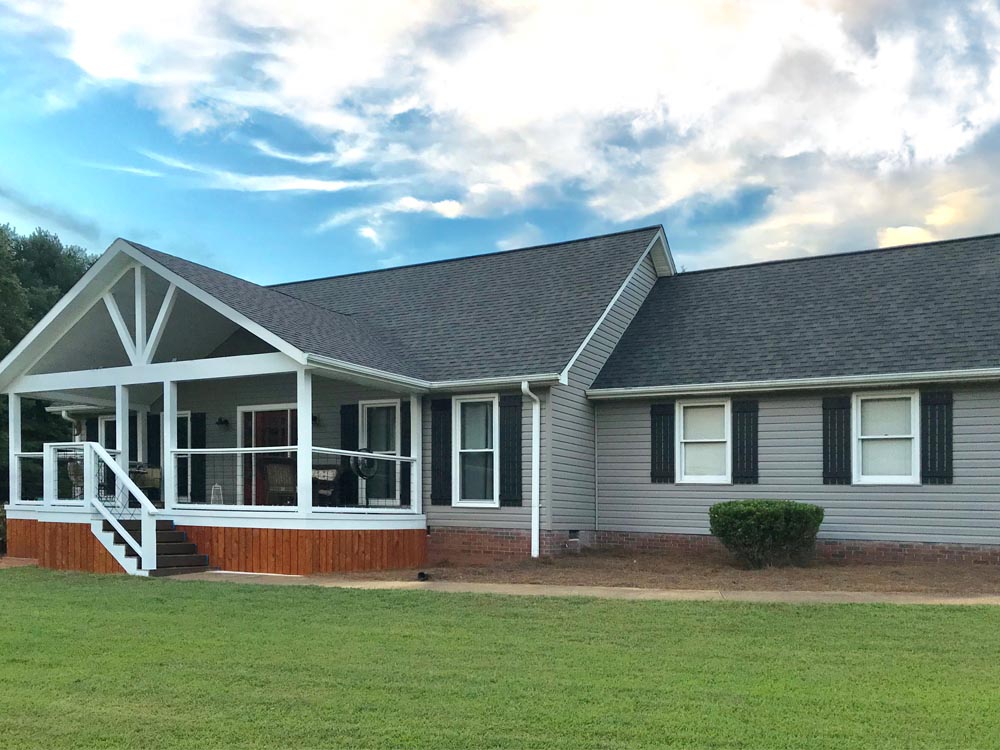

    Vinyl board and batten shutters installed

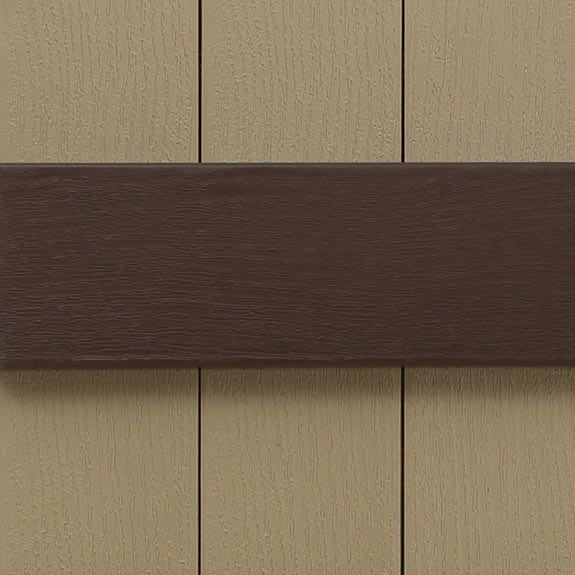

Vinyl board and batten shutters are built to replicate the simple contour of practical farmhouse panels. Each shutter is constructed using vertical boards and horizontal cross-beams called battens. Decorative vinyl shutters provide color, depth and character without the functional aspects of wood. The molded vinyl components have an embossed wood grain surface offered in 19 standard colors. Add definition by using a base color for the boards and a different accent color for the battens.

Board and batten vinyl shutters are an affordable way to significantly enhance the appearance of your house. Board and batten shutters complement many home styles with a traditional concept and rustic charm.

Top ProfileCustomize
Batten ColorCustomize
Board ColorCustomize
Per Pair: $0
Total Price: $0
Western Red Cedar Free shipping on most sizes
Western Red Cedar Production time: Approximately 4-7 weeks

Measure for exterior shutters.


Learn the best way to measure for board & batten vinyl shutters with step-by-step written instruction and supporting video. We guide you through the measuring process and help to determine the best method for installation of fixed decorative exterior shutters.

More Information
Manufacture time for exterior shutters.


ShutterLand standard vinyl board and batten exterior shutters currently require approximately 4-7 weeks to manufacture. Production times may vary, depending on a number of factors. We do not guarantee production or shipping times.

More Information
Delivery and shipping of exterior shutters.


Shipping is FREE for most outdoor board and batten vinyl shutters from our manufacturing facility in Illinois to your front door. We generally ship vinyl shutters using UPS, resulting in a shipping period under one week.

More Information




14 Available: 6 ⅞ – 33″ (W)


20 – 97″ in ¼″ increments (H)

Vertical Boards

3 ⅜” wide (BO)
⅞″ thick (T)
Number – see Spec Sheet


Closed: No gap between boards
Open: ¾” space between boards

Horizontal Battens

3 ⅜” height (BA)
⅞″ thick (BT)
Width same as shutter
Top and bottom
Location – see Spec Sheet
3rd batten required > 55″
20 Configurations (see all below)


⅛” thick

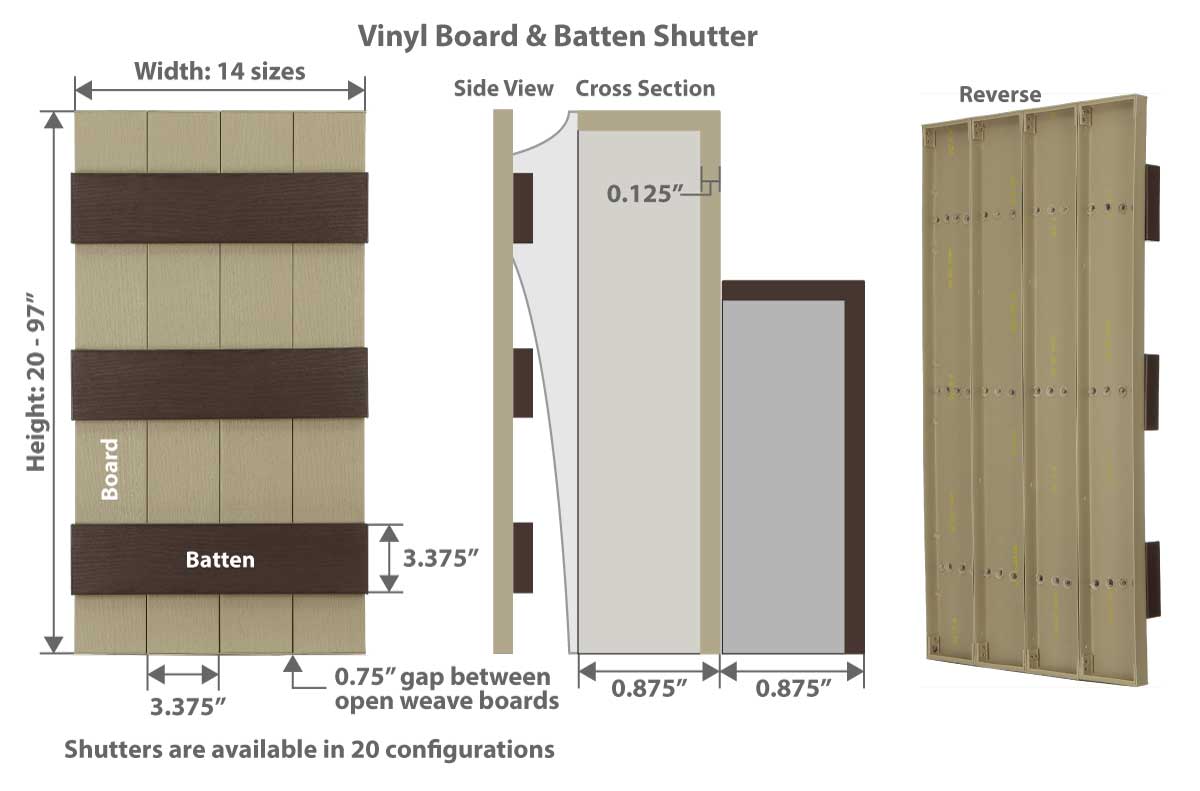

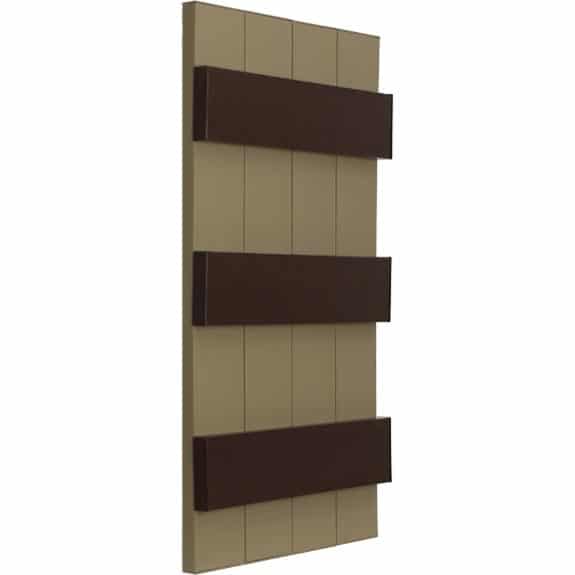

Brown vinyl board and batten shutter specifications.



Polypropylene (all colors)
Polystyrene (paintable)
Wood grain textured surface


19 Standard colors
1 Paintable finish

Boards and battens may be different colors

Top Options

Arch Top


Heat welded &
stapled components


Hollow, without detail

Production Time

Approximately 4-7 weeks


Limited lifetime



Measure Video

Stationary Only

Installation Video

Faux exterior hardware

Install faux hardware

More screws or spikes

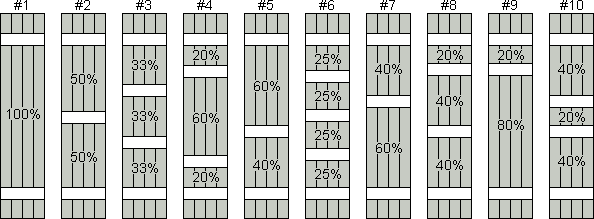

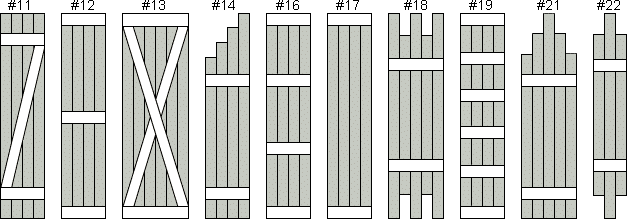

Board & Batten Configurations

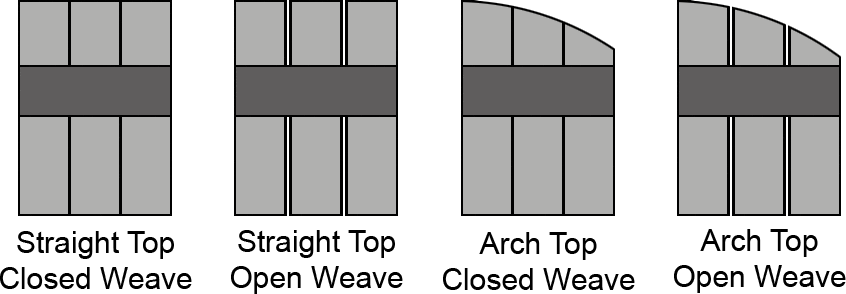

The concept of vinyl board and batten shutters is simple. Assemble 2-8 vertical boards braced with horizontal (and sometimes diagonal) battens. The boards can be spaced with open or closed weave in 20 different configurations. An open weave incorporates a small gap between vertical members.

Most exterior shutters are rectangular in shape with a straight top. However, some windows with a curved top require an arch top shutter to resemble the contour. Arch top shutters have a curved stile that gradually descends from the shutter peak on one side to eventually intersect the vertical portion of the opposite side. Often, the arch is a 1:1 ratio, meaning the distance from the top point to where the arch begins is equal to the width of the shutter. This scale works for windows that incorporate a half circle at the top of a rectangular bottom, the most common type of round top window. Some arch top windows are not perfect and employ a curve that requires a special profile. A springline measurement is required to construct a custom arch top shutter.

Vinyl Shutter Options

Two, three, four, five, or six cross battens are used to give distinction. Some styles use diagonal boards in either a z-pattern or x-pattern common on country homes or barns. Vinyl farmhouse shutters are sold in pairs, so unbalanced designs (including arch tops, z-pattern, and slant tops) will receive two mirror image panels. Vertical boards in some styles can be of different lengths to give a completely original appearance.

The durable polypropylene material is heat welded and stapled tight together with molded wood grain surface texture to effectively mimic the look of wood.  A select number of common shutter widths offered in regular intervals pair with custom heights in one-quarter inch increments up to 97”. The width determines the number of boards that are used. All ornamental vinyl shutters have a hollow open back that gains rigidity when affixed to the wall. The material is weather-resistant, water-proof and has an extended life expectancy.

Board & Batten Vinyl Shutter Colors

Nineteen standard outdoor colors coordinate well with both mature and newly constructed homes. Vinyl black shutters are definitely the most popular and widely installed. Black shutters complement existing features of the house while remaining neutral in tone. White and grays work in a similar fashion to promote a unification of all components of the building.

Blue, brown and green shutters may garner greater prominence but also highlight the windows and draw attention to the front door. Red shutters are the ultimate accent and will catch the eye. Pre-colored shutters should not be painted. The “Paintable” designation is fabricated from Polystyrene and arrives ready to finish. Most major paint manufacturers have compiled collections of exterior house colors that complement one another. We encourage you to find an arrangement that works best for your architecture style, geographic location and personal taste.

One color can be used for an entire panel, or two colors can be selected for distinction between the vertical boards and cross battens.

➤ Request free color samples in the mail for an on-site evaluation before ordering.

Vinyl Shutter Installation

Vinyl shutters can be secured on a variety of house surfaces. We provide metal screws that will be placed at the intersections where the boards and battens intersect. Use “Shutter Screws” to attach to wood, vinyl, and other soft siding. If installing to brick, masonry or concrete, a wall anchors will need to be employeed. The screw heads are color coordinated to match the specified shutter color. Vinyl shutters can only be installed in a stationary position and cannot be functional (swing open and closed with operable hardware).


Vinyl Shutter Shipping Time

Vinyl shutters require about 4-7 weeks to manufacture.

ShutterLand vinyl board and batten are made in America and shipped direct from our manufacturing facility in Illinois.

ShutterLand has over 17 years of experience assisting customers select the best outside window shutters for each unique application. We strive to provide comprehensive specifications and information about each exterior shutter style we offer.
