Economy Wooden Board & Batten Shutters

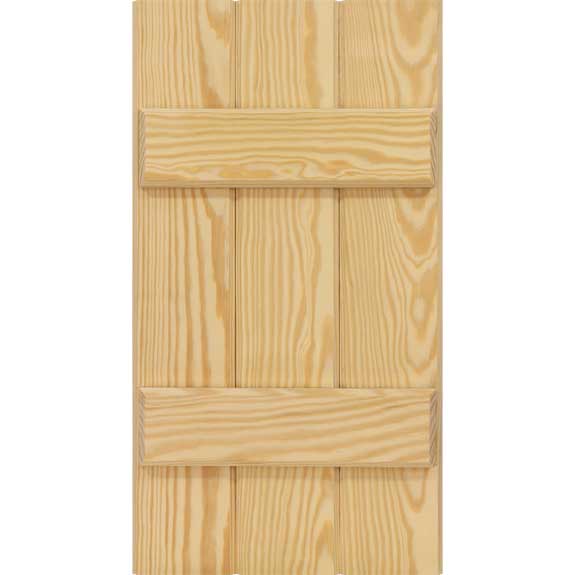

  • Economy wooden board and batten exterior shutters.
  • Exterior shutters with wooden board and battens.

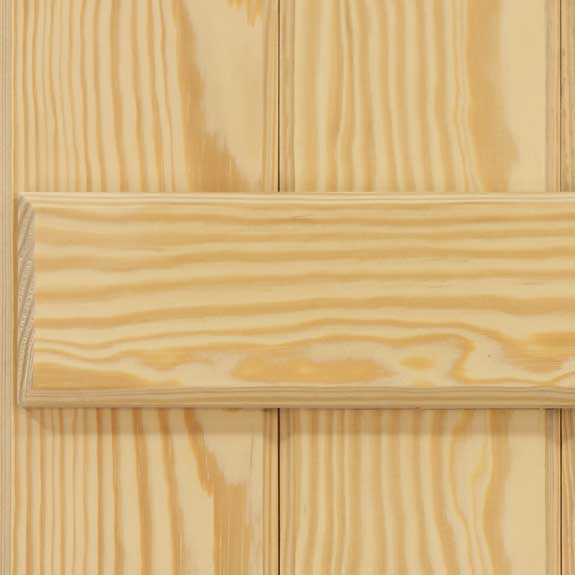

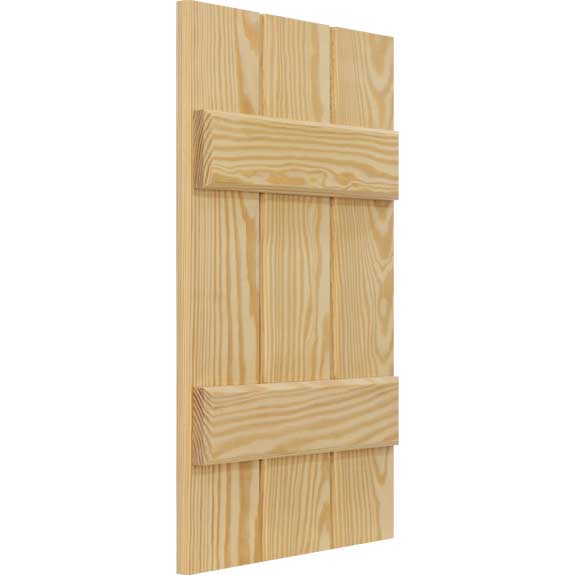

  • Wooden exterior board and batten shutters side view.

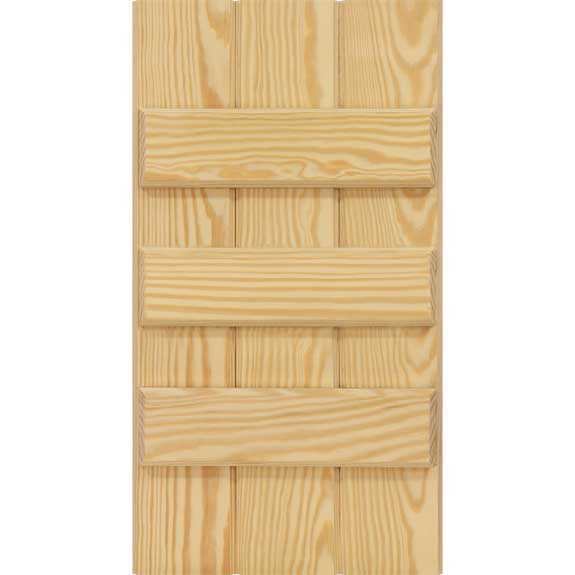

  • Economy wooden board and batten shutters with three battens.

Instantly improve the appearance of your house with Southern Yellow Pine board & batten shutters. The rugged panels, consisting of vertical boards and overlapping horizontal battens, are discernibly strong and stable. The simple style can be used successfully on large contemporary construction or a small cottage. Builder grade economy wooden board & batten shutters are assembled with the same proven methods as those from premium woods.

Specifications

Dimensions

Shutter Width

12 – 32″ in ¼″ increments (W)

Shutter Height

30 – 96″ in ¼″ increments (H)

Vertical Boards

Width (BO) adapted for panel
1″ thick (T)
45° eased side edges
3 boards for widths 12” to 17 ¾”
4 boards for widths 18” to 23 ¾”
5 boards for widths 24” to 32”

Board Weave

Closed: No gap between boards
Open: ¼” space between boards

Horizontal Battens

3 ½” height (BA)
1″ thick (BT)
Width ¾” less than shutter
45° eased edges
Top and bottom
Placed 7” from end of shutter

3rd batten – optional
Required over 55”
Centered by default

4th batten – optional
Equally spaced

Z-pattern batten
Reverse Z-pattern batten

Weight Calculate weight

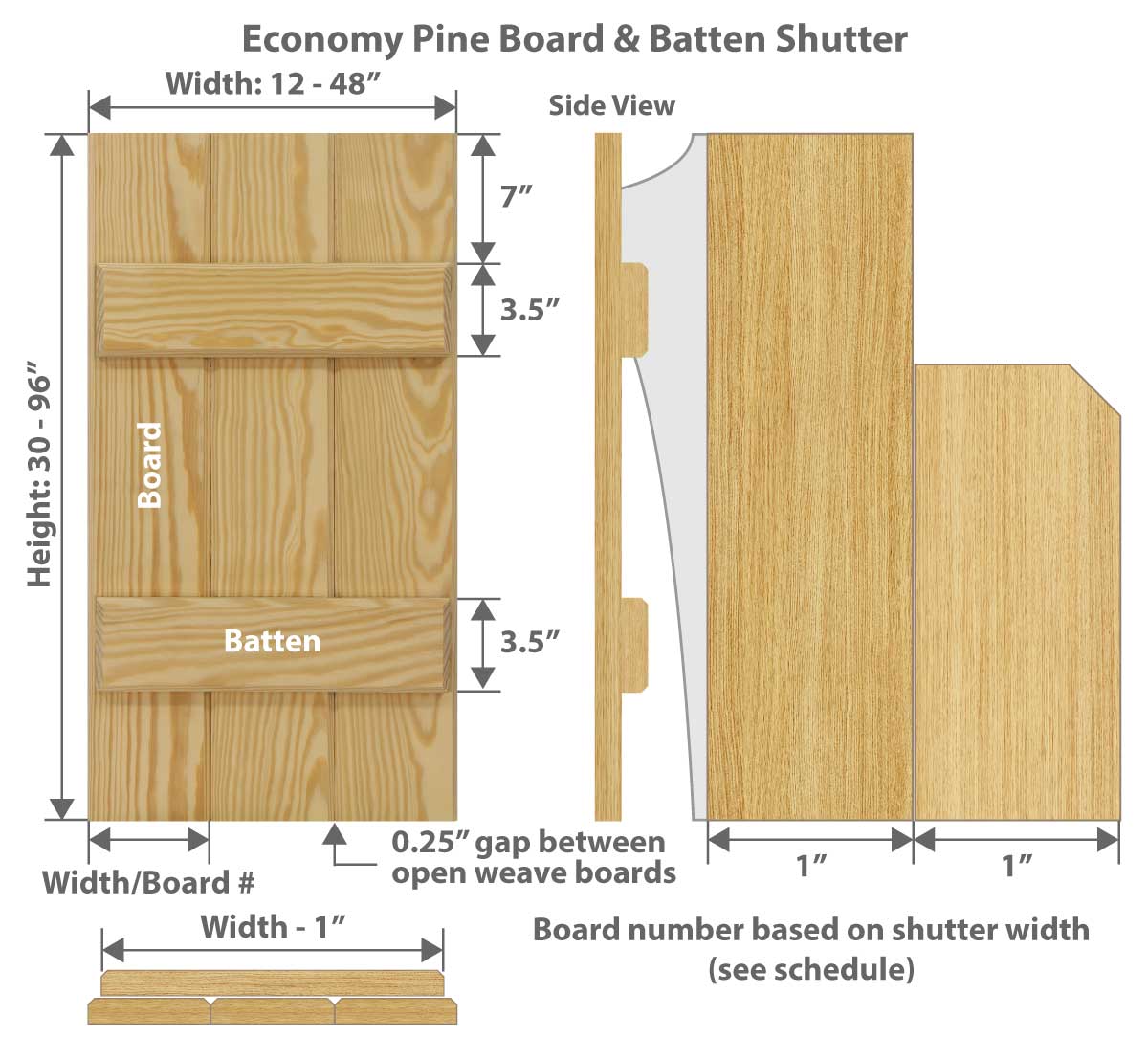

Wooden board and batten shutter specifications.

Details

Material Kiln dried Southern Yellow Pine
Finish & Colors

Standard paint (9 colors)*
Custom color ($120 match)*
*Touch-up paint included
Primed only
Unfinished – Paint Grade
(Raw B&B shutters are not recommended – factory priming seals all surfaces)
Unfinished – Stain Grade

Top Options

Straight
Arch top left
Arch top right

Assembly

All solid components constructed with:
Exterior wood glue
1 ⅝”screws
Corrugated joint fasteners

Reverse

Back is flat without detail

Production Time

Approximately 4-6 weeks

Warranty Limited lifetime
Measure

Instructions

Stationary Shutters
Functional Shutters
Install

Instructions

Stationary Shutters
Functional Shutters
Hardware

Not Included
Shop Here


Wooden Board & Batten Shutters Construction

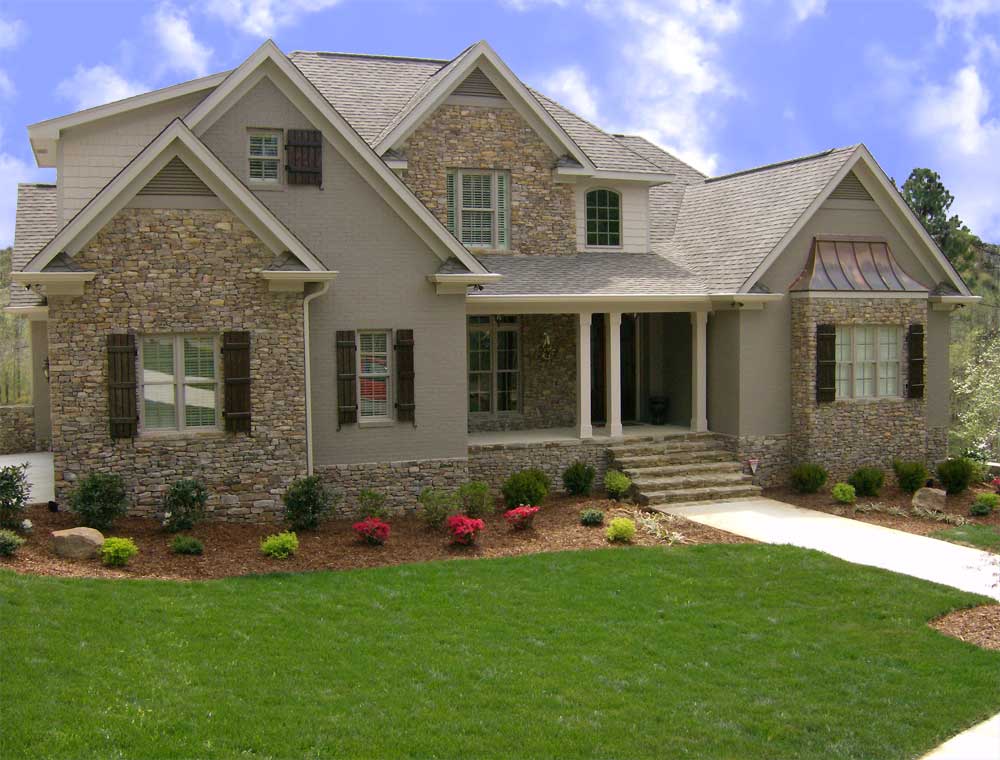

Builder grade exterior shutters are installed to add focal depth, texture and color to a once dull home. The affordable wooden board and batten shutters accomplish all of those goals with clean lines that complement all aspects of the exterior. Economy Pine shutters are constructed  with straight lengths of hand-selected lumber planks. The wood is then planed, cut to length, cut to width, routed, sanded, primed, sanded, assembled with industrial strength exterior glue, corrosion resistant screws, and corrugated joint fasteners.

Board & Batten Shutter Configurations

Vertical boards are initially cut to length and positioned to form the mass of the shutter. Board widths and number are determined by the total shutter width measurement specified. Planks can be configured tight together or with a gap between the members. Two horizontal battens lay on top of the boards and unite them into a single panel.

A third or fourth batten may be specified to secure equally spaced between the top and bottom battens. Alternatively, a diagonal batten can be chosen to form a z-pattern, popular on barns and the traditional farmhouse.

Arch-top shutters in the board & batten style can simulate the contours of a curve-top window. A springline measurement is needed to replicate the arc.

Wooden Shutter Installation

Wooden board and batten shutters can be installed to attach permanently to the house with screws, bolts, or another stationary method. However, the installing with hinges maximizes function and appearance. Hinges allow the shutters to swing open to either side of the window and closed if needed. Shutter hardware contributes to another style element to the window design. Shutter dogs hold exterior shutters in an open position and come in a variety of designs.

The back side of board and batten shutters have no detail and may not be suitable for most applications that regularly require them to close over the window.

Board & Batten Finish Options

Factory applied paint is a protective barrier from outside elements. We provide nine color options to match or complement an existing palette. This array may still not suit the requirements of certain projects, so a custom paint color may be identified for a one time charge of $120. Wooden board and batten shutters are fully primed and sanded prior to the application of two coats of high endurance, water-borne commercial-grade acrylic paint. Touch-up paint is included.

In some cases it may not be necessary to have the shutters finished in the production process. For DIY homeowners who wish to finish themselves, unfinished or primed shutters can be purchased. The priming process takes place before components are assembled so all surfaces can be covered. It is strongly recommended that outdoor window shutters that will eventually be painted are ordered with factory priming. We only suggest unfinished wood if the shutters are intended to be stained.

Premium wood board & batten shutters take about 4-6 weeks to manufacture. After construction is complete, the exterior shutters are shipped direct to your house.
