How to Measure For Vinyl Shutters

Use the following guidelines to measure for exterior vinyl shutters to fit your windows.

Ordering the proper size exterior shutter for the window is important and will result in the best appearance.

Measure for Louvered, Raised Panel and Combination Shutters:

Measure Windows for Board & Batten Shutters:

Measure Windows for Exterior Vinyl Shutters

Step-by-step instructions on how to measure for vinyl shutters to be installed on exterior windows.

Step 1: Measure width

Vinyl shutter width depends on the space available around a window, as well as the desired appearance. For the look of functioning shutters, the panel width should be about half the width of the window. However, non-functional decorative exterior vinyl shutters will never be closed over windows and are installed only as decorative accents to improve the appearance of the home or building.

Widths of vinyl shutters are offered in a limited set of pre-established sizes. This chart can help decide the best size. Sizes are nominal, and the actual width received may vary by 1/4 inch more or less than ordered.

Large or bay windows are often too wide to use panels that appear to be functional, so a smaller panel is often appropriate.

Step 2: Measure height

Measure the height of each window or door (sash) and order the vinyl shutters the same dimension. Shutter height is the distance from the lowest to the highest part of the panel. It is acceptable to install stationary shutters the full height of the window trim, which in some cases appears more symmetrical.

Vinyl shutters are offered in a range of heights in quarter-inch increments. Sizes are nominal, and the actual height may vary by 1/8 inch more or less than ordered.

Step 3: Determine Top Profile

Select either “Straight” or “Arch”. A standard straight top has square corners and a horizontal top. Arched top shutters have a straight edge on one side and a curved slope on the other.

A springline dimension is required to order arch-top shutters. Ascertain the springline by measuring from the top of the window down to the start of the arch. Many arch tops have a 1-to-1 (1:1 drop) where the springline equals the shutter width.

Step 4: Configuration

Each exterior vinyl shutter style has a number of configuration options. The divider rail designs are shown on the specific style page.

Step 5: Color

Choose from 19 standard molded-through exterior vinyl shutter colors. If none of the colors meet your project requirements, select the DIY paintable version to finish yourself.

Step 6: Installation and Hardware

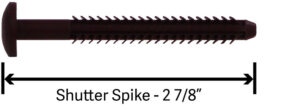

Vinyl shutters can be installed with either metal screws or vinyl spikes. Screws are suggested for soft materials like wood and vinyl siding. Spikes are recommended for hard surfaces like masonry, brick, stucco, or hardboard. Only screws can be used with board and batten shutters.

Vinyl shutters currently require about 2-4 weeks to manufacture. After shipping direct, vinyl shutters arrive ready to install.
